Name: FMUSER 0-10KW FM Transmitter Kit
SKU: 19471
Availability: InStock

FMUSER 0-10KW FM Transmitter Kit

$73.00 – $39,996.00

>This is the 1000W transmitter cover range 20-30KM outside.It set for the people who want to build the fm station first time. It is widely used on the meeting ,village broadcasting,Speech ,concert .And alsoschools,supermarkets, factories, railway stations, conferences. You can build your own station easily. >The LCD screen will show all the operation.It is…

Size

Description

>This is the 1000W transmitter cover range 20-30KM outside.It set for the people who want to build the fm station first time. It is

widely used on the meeting ,village broadcasting,Speech ,concert .And alsoschools,supermarkets, factories, railway stations,

conferences. You can build your own station easily.
>The LCD screen will show all the operation.It is easy to control with one Tuning button.
>It has TEMP protection – SWR protection. It will be warning when there is something wrong.
>The PLL funtion will let the transmitter in a very good singal and frequency.
>The stereo voice bring you nice trip of listening.
>This product is made by FMUSER.It is good quality and it has 1 year warranty period.This transmitter will come with English manual to tell you how to operate it .We also have the engineer to help you with all the problem online.

Specification:

—————————————————————–

– Technical Specification

– RF Output Power: 0 to 1000 Watt, 1W/Step

– Frequency range: 87.5-108 Mhz, 100Khz/Step

– AC power source: AC100 – 240V ±10% ,50-60Hz, single phase

– Frequency Stability: better than ±100Hz

– S/N Ratio: More than 50dB

– Distortion: less than 0.1%

– Modulation: FM, ±75KHz peak deviation

– Transmission Signal: FM Stereo or Mono

– Tuning Design: Stable PLL Technology

– Harmonic suppression: < -65dBC

– Stereo Separation: More than 40db

– RF Output Connector: L29 -female

– RF Output Impedance: 50 ohm

– Audio channel Frequency Response: 50 – 15000Hz ±0.15dB

– Audio Input Level: -15db, Max -30db

– Audio Input Connector: XLR type

– AUX Input Connector: BNC type -female

– Operating temperature range: -10 to 45

– Size of Transmitter Unit: 483mm * 400mm * 89mm (19″ Standard 2U case)

– Shipping Weight: 15Kg

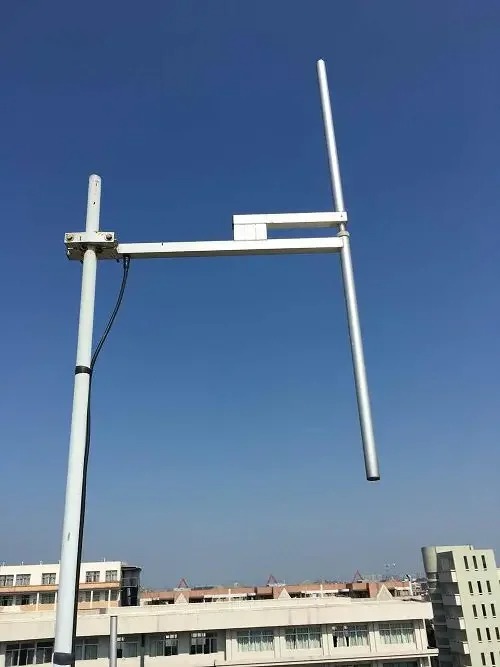

FMUSER FU-DV2 New FM Dipole Antenna for fm transmitter broadcasting FM Antenna for 1kw FM transmitter

Technical Specification:

* Band II Dipole
* Broadband from 87.5-108mhz
* 2dBd Gain
* Vertical Polarization
* Omni Directional Pattern

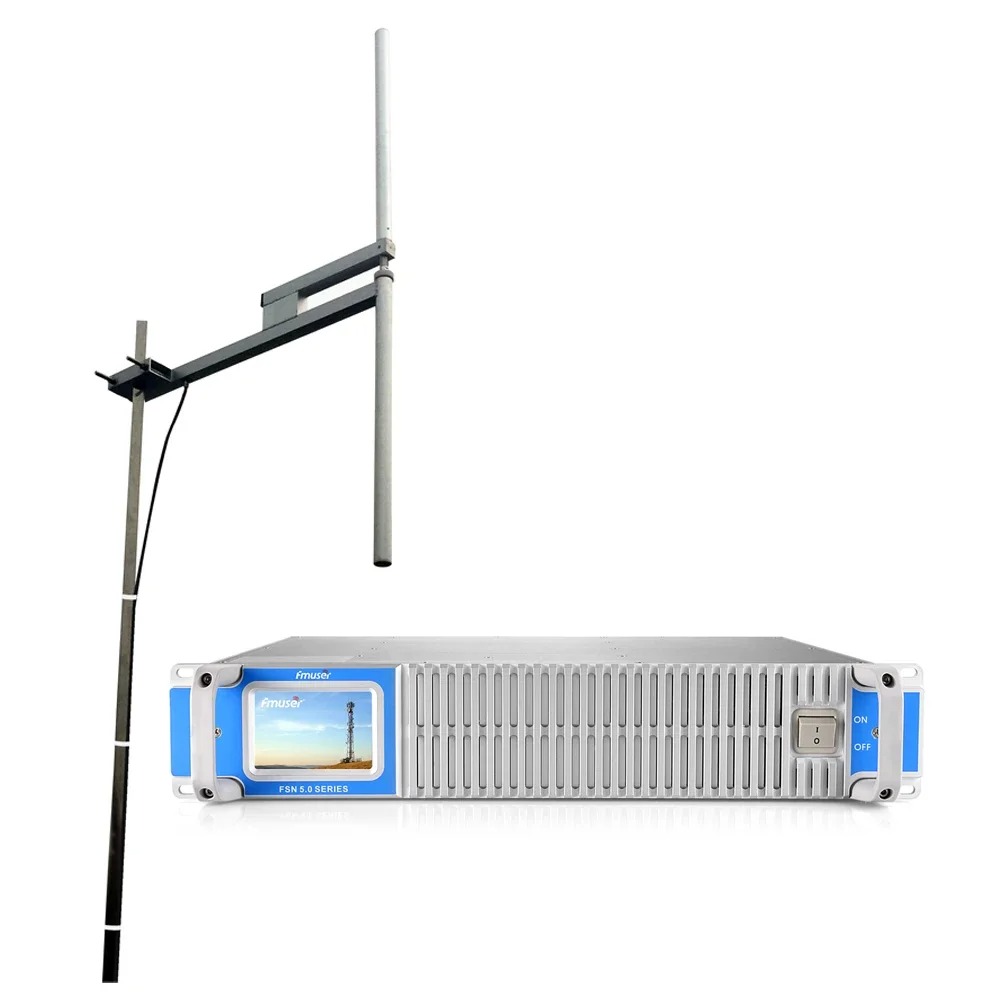

Package included:

1pc 1000W FM Transmitter ( power supply already include inside )
1pc 1KW High gan dipole antenna
1pc 30Meters feeder cable with connector

Additional information

Weight	10 kg
Dimensions	30 × 25 × 20 cm
Size	FU-X01, FU-05B, FU-7C, FU-15A, FU-15B, FU-25A, FU-30C, FU-200, FU-1000C, FSN-2000T, FSN-5000T, FSN-3500T, FSN-1500T, FSN-1000T, FSN-600T, FSN-350T, FSUS-150B, FSN-50B, FSN-50, FU-50C, FU-1000D, 1U, 5W FM, 30W FM, 100W FM, 300W FM, 500W FM, 500W, 1000W, 1000W FM, 1KW, 2000W, 2KW, 3KW, 5KW, 10KW, 30W FM-A, 100W FM-A, GPS-FM8
